Worm Gearbox for AGV AMR Robot Drive Wheels

Ultra-Compact Worm Gear Reducer for AGV & AMR Drive Wheels: Maximum Torque in Minimum Space

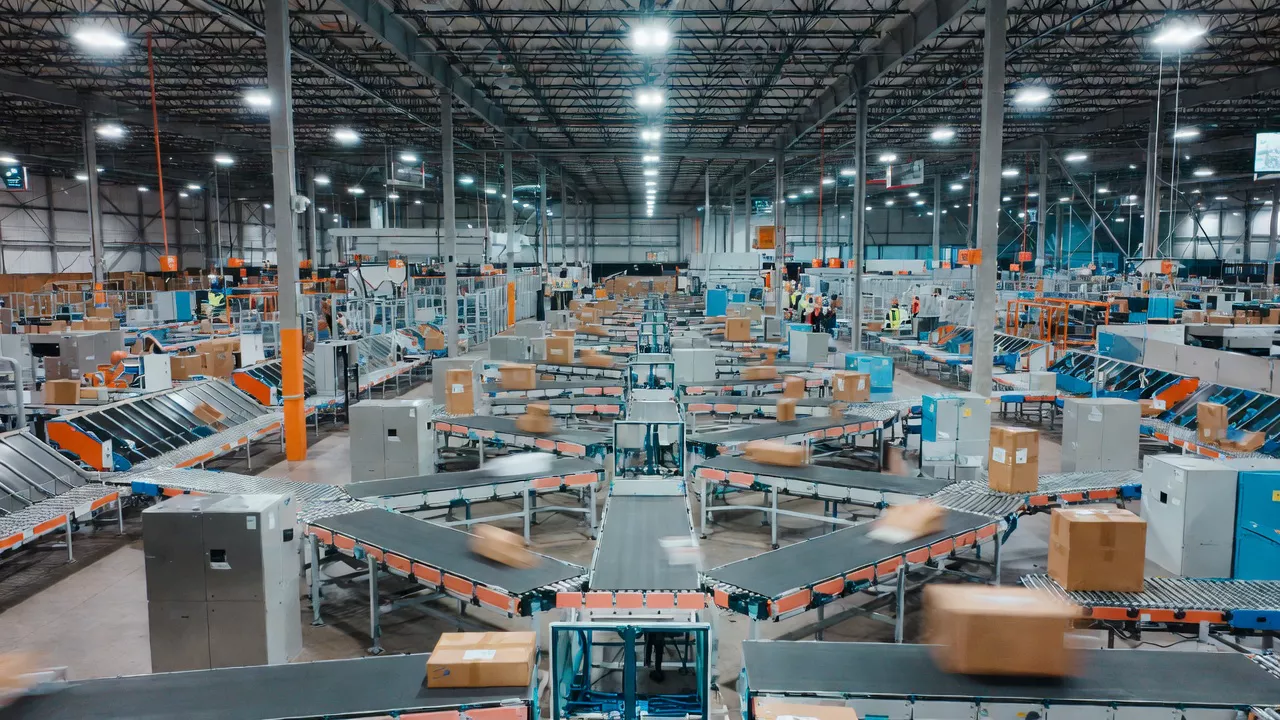

Autonomous Guided Vehicles (AGVs) and Autonomous Mobile Robots (AMRs) are revolutionising warehouse logistics, automated factories, and hospital material transport. Their drive wheel gearboxes must pack enormous load-bearing capacity into a chassis just 100-200 mm off the ground. The worm gear reducer solves this with its uniquely compact right-angle geometry, fitting inside a drive wheel module where no helical or planetary gearbox could physically fit. Our compact worm gearboxes are engineered for mobile robot drive duty – delivering payload capacity, smooth motion control, and maintenance-free service life that AGV/AMR manufacturers demand.

Why Worm Gearboxes Win in Low-Profile AGV Drive Modules

AGV Drive Duty: Key Engineering Requirements

• High starting torque: Loaded AGVs starting from rest on inclines require up to 5x running torque at start. The worm gear torque multiplication is highest at low speeds – exactly when most needed.
• Long maintenance-free intervals: AGVs in 24/7 distribution centres must operate for months between service stops. Our factory-sealed worm reducers use lifetime lubrication and sealed bearings.
• Low acoustic output: Hospital and office-deployed AMRs operate near people. Worm drive sliding contact mechanism inherently produces lower gear mesh noise than helical or bevel alternatives.
• Bidirectional operation: All standard worm gearboxes operate equally well in forward and reverse – essential for AGV drive wheels that must move in both directions and navigate around obstacles.
• Shock load tolerance: AGVs encounter floor joints, ramp transitions, and collision events. Worm gear mesh is more tolerant of sudden load spikes due to distributed contact area across multiple worm thread turns simultaneously.

Technical Specifications & Selection Guide

Service Factor & Drive Selection for AGV Duty

• Total vehicle load distribution: Calculate maximum wheel load as total vehicle + payload weight x 1.3 (dynamic load factor) divided by number of driven wheels.
• Incline torque requirement: For AGVs operating on ramps, calculate rolling resistance + incline force component. Apply SF = 1.5 to handle variation in floor surface friction and temperature.
• Motor braking through gearbox: In regenerative braking configurations, the gearbox must handle bidirectional torque flow. Our worm gearboxes handle bidirectional drive with identical rated torque in both directions.
• Thermal cycle with intermittent motion: AGVs stop-start frequently. Verify the intermittent duty (S3/S4) rating – most AGV applications can use a gearbox rated at 60-70% of equivalent continuous duty.

Certifications & Standards for Robot Drive Applications

Case Studies: Worm Gearboxes in AGV & AMR Applications

Why AGV & AMR Manufacturers Choose Our Worm Gearboxes

Frequently Asked Questions

Why is a worm gearbox more suitable than a planetary gearbox for AGV drive wheels in terms of chassis height?

A planetary gearbox is coaxial – motor and output shaft are on the same axis, making the drive module tall unless a bevel stage redirects the output, which adds length. A worm gearbox is right-angle – the motor mounts horizontally while the output shaft is perpendicular. This allows the motor to lie alongside the chassis rather than above the wheel, dramatically reducing the module contribution to overall vehicle height. For many AGV designs, the worm gearbox is the only single-stage solution that fits within the chassis envelope constraint.

Does the worm gearbox support regenerative braking in AGV deceleration?

For worm gearboxes with ratios above approximately 30:1, the self-locking characteristic means the gearbox will resist back-drive from the wheel – this limits regenerative braking effectiveness. For AGVs where regenerative braking is a design priority, we recommend selecting a ratio below 20:1 and implementing motor braking through the drive controller. For most warehouse AGVs where regenerative recovery is not a primary goal, the self-locking property provides free braking force when motor power is cut.

What hollow bore diameter range is available for wheel axle integration?

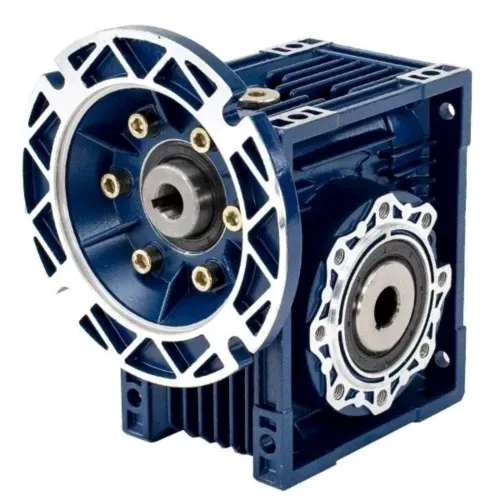

Our standard hollow bore output shaft sizes range from 20 mm (NMRV25 series) to 120 mm (cast iron size 150 frame). Custom bore diameters within these bounds are available. The hollow bore allows the wheel axle to pass directly through the gearbox output shaft – creating a clean, compact drive module. The bore includes a standard keyway; custom keyway or spline profiles can be machined on request.

How does the worm gearbox perform in cold storage environments at -20 to -30 deg C?

Cold storage is one of our most frequently requested AGV environments. Mineral gear oil at -25 deg C can be 100 times more viscous than at operating temperature, causing motor overload protection trips. We specify PAO synthetic gear oil with a pour point of -55 deg C for all cold storage AGV applications, factory-filled before shipment. Lip seals are specified in FKM for cold temperature flexibility rather than standard NBR, which can harden below -20 deg C and lose sealing effectiveness.

What is the expected service life of a worm gearbox in a 24/7 warehouse AGV application?

With correct sizing (SF 1.5 or higher for AGV duty), PAO synthetic lubricant, and IP54+ sealing, our worm gearboxes are designed for a minimum of 20,000 hours of service in continuous-shift AGV operation – approximately 5 years of three-shift running. The worm wheel bronze is typically the wear-limiting component. Replacement worm wheel and shaft pairs are stocked as service parts with a 10-year availability commitment for all current production frames.

Can you supply the gearbox as part of a complete drive module assembly?

We specialise in the worm gearbox component and can supply it matched with a motor (gearmotor unit) to your specification. For complete drive module assemblies including wheel hub, wheel, motor, encoder, and brake, we work on an OEM basis with AGV manufacturers. Contact our team to discuss your AGV drive train requirements.
