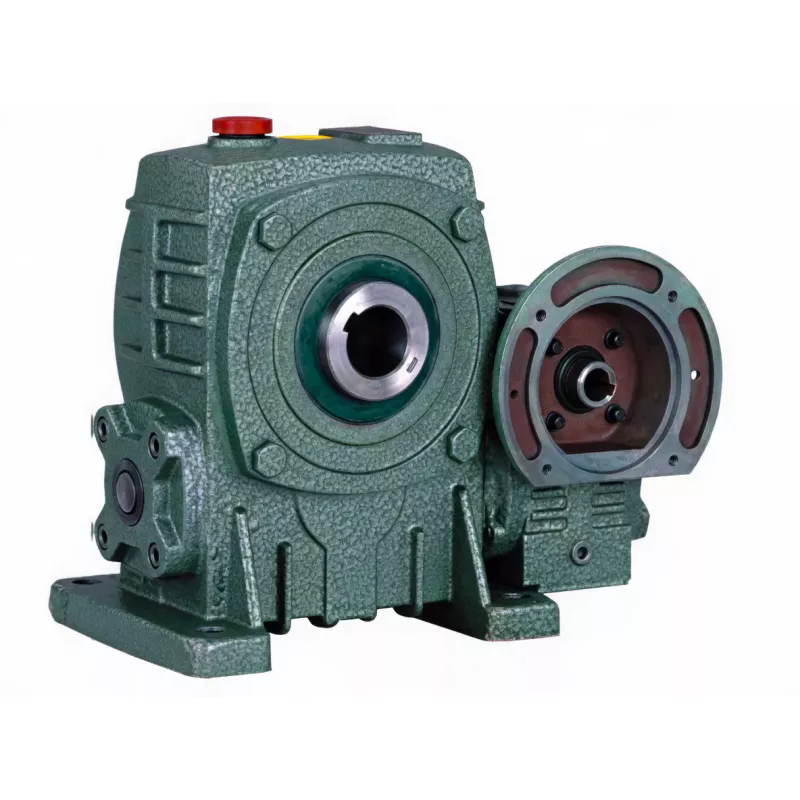

WPEDA Flange-Mounted Double Speed Worm Gear Reducer — Motor-Direct Two-Stage Drive for Ultra-High Ratio Compact Process Equipment
When a large food processing machine, pharmaceutical vessel, or continuous industrial mixer requires a combined ratio of 1/200–1/900 from a direct motor-mounted drive — without the coupling alignment complexity of indirect drive arrangements — the WPEDA flange-mounted double speed worm gear reducer is the engineered answer. The IEC motor flange at the first-stage input eliminates the coupling between motor and gearbox, while the two-stage worm gear cascade delivers the extreme speed reduction that no single-stage product can achieve.
Accepting motors from 0.12 kW to 5.5 kW across 9 size groups (40-70 through 155-250 mm combined centre distance), the WPEDA covers the full range of motor-direct two-stage applications from small laboratory stirrers to large industrial agitator vessels. Five shaft-direction positions (A–E) ensure integration flexibility. Motor flange dimensions comply with IEC 60034-7. O Ever-power | Request a Motor Compatibility Check
Technical Specifications

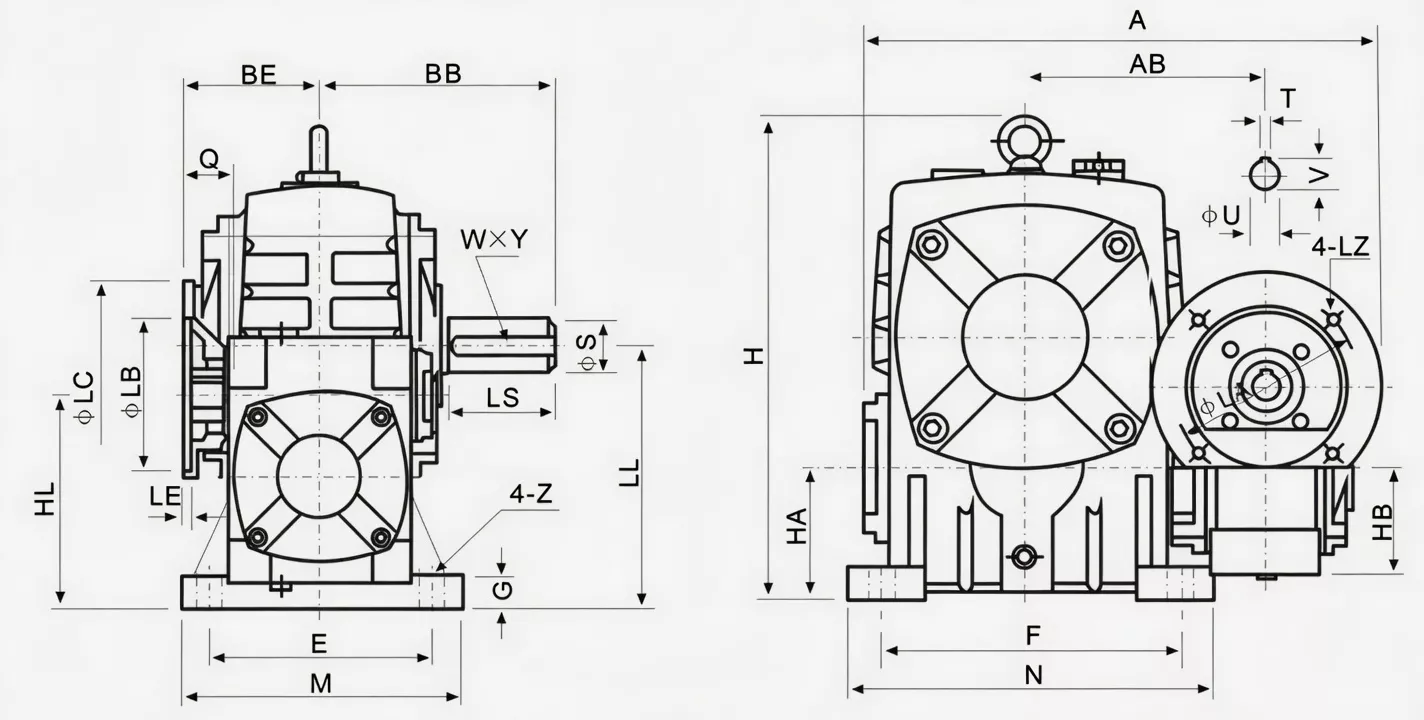

Full dimensional and motor flange data. LA=flange OD; LB=pilot OD; LC=bolt circle; LE=bolt count; LZ=bolt size. Input hole: Q, U, T×V. Output shaft: LS, S, W×Y. Reference input speed 1500 r/min. All dimensions in mm.
| Size | Power(kW) | Ratio | A | AB | BB | BE | HL | LL | H | HA | HB | M | N | E | F | G | Z | LA | LB | LC | LE | LZ | Q | U | T×V | LS | S | W×Y | Wt(kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 40-70 | 0.12 | 1/200–1/900 | 314 | 153 | 131 | 75 | 110 | 140 | 236 | 70 | 50 | 150 | 190 | 115 | 150 | 20 | 15 | 115 | 95 | 140 | 4 | M8 | 31 | 11 | 4×12.8 | 60 | 28 | 7×4 | 19 |
| 50-80 | 0.18 | 314 | 144 | 142 | 83 | 130 | 160 | 268 | 80 | 65 | 170 | 220 | 135 | 180 | 20 | 15 | 115 | 95 | 140 | 4 | M8 | 31 | 14 | 4×12.8 | 65 | 32 | 10×4.5 | 27 | |
| 60-100 | 0.37 | 1/200 | 337 | 175 | 169 | 91 | 160 | 200 | 336 | 100 | 75 | 190 | 270 | 155 | 220 | 25 | 15 | 130 | 110 | 160 | 4 | M8 | 33 | 14 | 5×16.3 | 75 | 38 | 10×4.5 | 45 |
| 70-120 | 0.37/0.75 | 1/300–1/400 | 445/425 | 193 | 190 | 109/111 | 190 | 240 | 430 | 120 | 90 | 230 | 320 | 180 | 260 | 30 | 18 | 130/165 | 110/130 | 160/200 | 4 | M8/M10 | 40/42 | 14/19 | 5×16.3/6×21.8 | 85 | 45 | 12×4.5 | 75 |
| 80-135 | 0.75/1.5 | 1/500–1/600 | 499 | 226 | 210 | 125 | 215 | 270 | 480 | 135 | 105 | 250 | 350 | 200 | 290 | 30 | 18 | 165 | 130 | 200 | 4.5 | M10 | 48/52 | 19/24 | 6×21.8/8×27.3 | 95 | 55 | 16×6 | 103 |
| 100-155 | 1.5 | 1/800 | 570 | 269 | 252 | 148 | 235 | 290 | 531 | 135 | 130 | 275 | 390 | 220 | 320 | 35 | 21 | 165 | 130 | 200 | 4.5 | M10 | 52 | 24 | 8×27.3 | 110 | 60 | 18×7 | 147 |
| 120-175 | 2.2/3.0 | 1/900 | 631 | 287 | 255 | 181 | 280 | 335 | 600 | 160 | 155 | 310 | 430 | 250 | 350 | 40 | 21 | 215 | 180 | 250 | 5 | M12 | 63 | 28 | 8×31.3 | 110 | 65 | 18×7 | 204 |
| 135-200 | 3.0/4.0 | 630 | 318 | 319 | 202 | 310 | 375 | 666 | 175 | 185 | 360 | 480 | 290 | 390 | 40 | 24 | 215 | 180 | 250 | 5 | M12 | 63 | 28 | 8×31.3 | 125 | 70 | 20×7.5 | 298 | |
| 155-250 | 5.5 | 815 | 380 | 385 | 247 | 355 | 450 | 800 | 200 | 203 | 460 | 560 | 380 | 480 | 45 | 28 | 265 | 230 | 300 | 5 | M12 | 83 | 38 | 10×41.3 | 155 | 90 | 25×9 | 470 |
* Motor power ranges are for representative matched IEC motors. HA and HB = front/rear housing height offsets. LA, LB, LC = IEC flange dimensions per IEC 60034-7. Multiple motor sizes separated by /.
Product Structure — IEC Flange + Two-Stage Worm Cascade
The WPEDA housing integrates an IEC motor flange at the first-stage worm shaft input — the motor shaft slides directly into the keyed input bore, eliminating the coupling entirely. The two-stage worm cascade then reduces the motor speed through two sequential gear meshes, delivering the ultra-high reduction ratio at the solid output shaft. This creates a compact motor + two-stage gearbox assembly with no intermediary coupling components.
| Input | IEC 60034-7 motor flange + keyed input bore — motor direct, no coupling |
| Stages | Two worm-and-wheel pairs in series; combined ratio 1/200–1/900 |
| Motor Range | 0.12 kW (size 40-70) to 5.5 kW (size 155-250) |
| Housing | FC25 cast iron; elongated two-stage body with IEC flange at input end |
| Output | Solid shaft with keyway; 5 direction positions (A–E) |
| Motor Compat. | IEC standard IE2/IE3 motors and Y/Y2 Chinese series |
