Worm Gearbox for Belt Conveyor Systems: The Backbone of Continuous Material Handling

In virtually every manufacturing plant, distribution centre, and bulk-handling facility worldwide, belt conveyors are the arteries that keep production alive. At the heart of each belt conveyor drive station sits a worm gear reducer — an elegantly simple yet robustly engineered component that converts motor speed into the controlled, sustained torque needed to pull thousands of tonnes of material every shift. Our worm reducers are engineered specifically for belt conveyor duty: compact 90° right-angle geometry that slots seamlessly into head-drive frames, combined with self-locking characteristics that keep loaded belts stationary the instant power is removed.

How Belt Conveyors Use Worm Gear Drives

A belt conveyor transfers motion from an electric motor to a head pulley (drive drum) via a shaft-mounted or foot-mounted worm gear unit. The worm shaft — driven by the motor — meshes with the worm wheel at a precise 90° angle, producing a large speed reduction (commonly 10:1 to 60:1) in a single compact stage. The resulting low-speed, high-torque output rotates the drive drum, which friction-drives the rubber belt and any load resting on it.

Key application points within belt conveyor systems include:

• Head (drive) pulley station — primary drive location, often requiring torque from 150 N·m up to 2 000 N·m for heavy aggregate belts
• Inclined conveyor drives — self-locking worm geometry prevents reverse run under load, eliminating the need for external backstops on moderate inclines (<15°)
• Take-up / tensioning mechanisms — small worm reducers position the gravity take-up carriage accurately
• Tripper car drives — mobile discharge units use worm drives for travel motion

The material of the worm wheel is typically centrifugally cast phosphor bronze (C90700 / GB ZCuSn10Pb1) machined to a precision helical profile. This alloy’s excellent anti-friction property against the hardened-steel worm shaft minimises wear even at high radial loads. The cast-iron or ductile-iron housing (EN-GJL-250 / HT250) provides rigid support and efficient heat dissipation.

Technical Specifications & Selection Guide

Choosing the right worm reducer for belt conveyor duty requires matching several interdependent parameters. The table below lists the typical range for our catalogue products — custom configurations available on request.

Service Factor & Temperature Selection

For belt conveyor applications, apply a service factor (SF) of 1.25 – 2.0 depending on daily operating hours and start frequency. Dusty quarry or cement-plant environments demand SF ≥ 1.75 combined with IP65 sealed bearings and labyrinth seals. Ambient temperatures above 40 °C require upgraded synthetic lubricant (ISO VG 220 polyalphaolefin) and an up-rated thermal capacity check — contact our engineering team via the technical enquiry form.

Compliance & Quality Standards

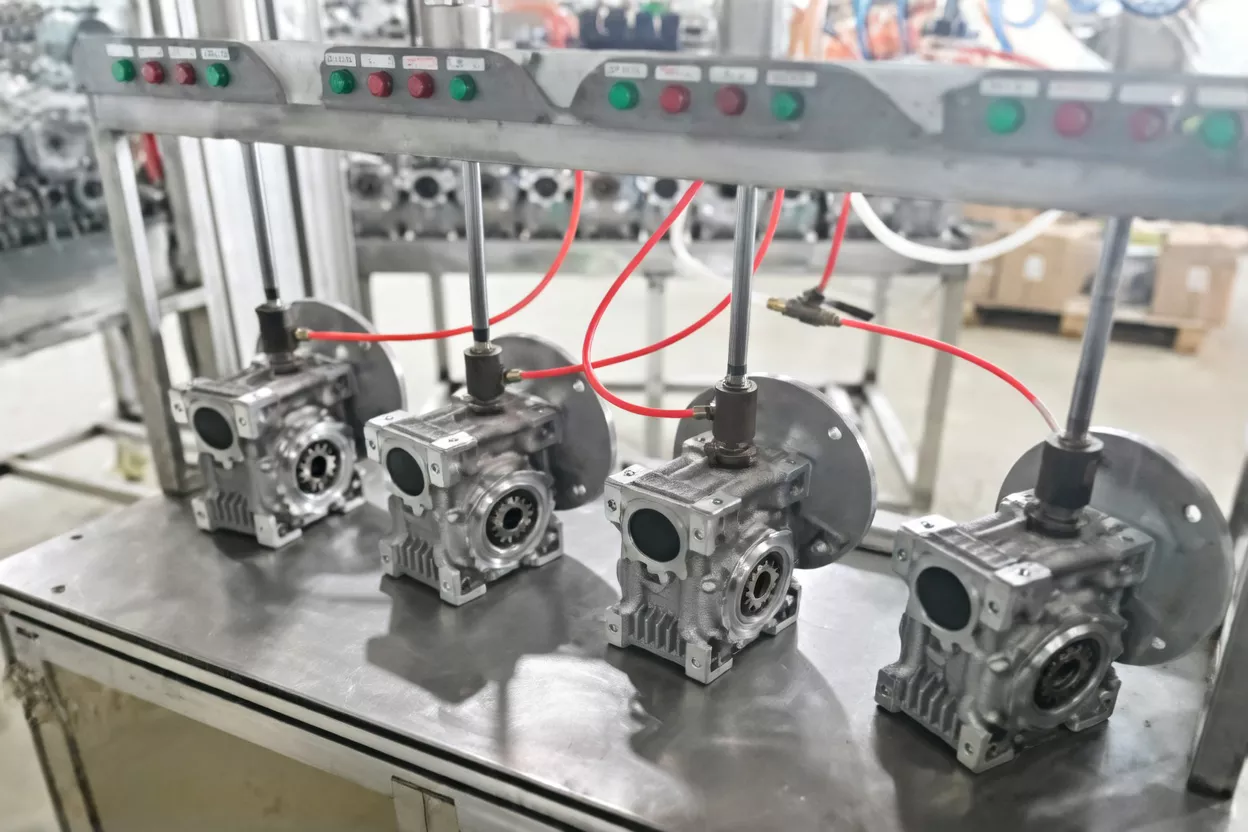

All worm reducers manufactured at our facility comply with the following internationally recognised standards:

• ISO 9001:2015 Quality Management System — certified manufacturing facility
• CE Marking — machinery directive 2006/42/EC compliance
• Motor flange dimensions per IEC 72-1 (B5/B14 flanges) — bolts straight onto standard IEC motors
• Shaft tolerances to ISO 286-1 h6/k6 for reliable coupling fit
• Sealing to IP65 / IP66 (IEC 60529) — dust-tight and jet-water resistant
• Gear oil fill per ISO VG 220 mineral or synthetic on request

Case Studies: Real-World Belt Conveyor Solutions

Why Choose Us for Belt Conveyor Worm Reducers?

Frequently Asked Questions

What gear ratio should I choose for a belt conveyor driven at 0.5 m/s with a 315 mm drum?

Drum speed = (0.5 m/s × 60) / (π × 0.315 m) ≈ 30.4 rpm. With a 4-pole motor at 1 450 rpm (50 Hz), the required ratio ≈ 1 450 / 30.4 ≈ 47.7. Select the standard ratio of 50:1. Always verify the thermal power rating of the reducer at that ratio for your ambient temperature.

Does a worm gearbox self-lock on an inclined belt conveyor?

Worm reducers with a lead angle below ~5° (typically ratios ≥ 30:1) are considered self-locking, meaning the output shaft cannot be back-driven. However, for conveyors inclined more than 10° or carrying heavy loads, an external mechanical backstop is still recommended as a safety redundancy. Dynamic self-locking is not guaranteed during motor coasting — always consult our engineering team for inclined applications.

What is the typical efficiency of a worm reducer and how does it affect energy cost?

Single-stage worm reducers achieve 70–92 % mechanical efficiency, depending on ratio and sliding speed. Lower ratios (10:1) are more efficient (88–92 %); higher ratios (50:1 – 80:1) fall to 70–78 %. For continuous conveyor duty, choosing the lowest ratio that still meets speed requirements will minimise running costs. Synthetic lubricants also improve efficiency by 2–4 % over mineral oil.

Can I use a worm gear drive with a variable frequency drive (VFD)?

Yes — worm reducers are fully compatible with VFDs. However, at low motor speeds (<20 Hz), cooling fan effectiveness drops, so thermal derating must be applied. Specify VFD-duty when ordering if the motor will operate below 25 Hz for extended periods. We also recommend synthetic lubricant for VFD applications to handle varying viscosity demands.

What maintenance does a belt conveyor worm gearbox require?

For the first 200 hours, check the oil level and inspect for leaks. Replace the initial oil charge at 300–500 hours to remove run-in particles. Subsequently, change oil every 2 500–5 000 hours depending on load and temperature (shorter interval for heavy-duty or high-temperature applications). Inspect lip seals and bearing play annually. Our reducers include an oil level sight glass and drain plug for easy servicing.

Do you supply worm reducers with hollow output shaft or torque arm for shaft-mounted conveyor drives?

Yes. We stock and supply hollow bore worm gear units with a keyway-fit hollow shaft and a torque-arm bracket that mounts directly onto the conveyor head drum shaft — eliminating the need for a coupling and reducing total drive assembly length. Available for output torques up to 2 500 N·m. Custom bore diameters (e.g., 60 mm, 75 mm, 90 mm) are available on request.
